Introduction

If you’ve been around networking long enough chances are you have heard of the open source routing software Zebra or Quagga. You may have used them without knowing, if you ever worked with Sidewinder firewalls or Brocade’s Vyatta. If you :heart: Linux and open source routing you may have heard of the next evolution in open source routing FRRouting aka Free Range Routing (FRR). If you haven’t;

FRR is a routing software package that provides TCP/IP based routing services with routing protocols support such as BGP, RIP, OSPF, IS-IS and more. It uses the Linux kernel’s routing stack for packet forwarding.

FRR has been around since 2016 when it was forked from the Quagga project. It has a growing number of contributors and support from various networking vendors such as Cumulus, VMware, Volta, Orange and 6wind with the common goal of creating a “world class routing stack.” The FRR project is currently licensed under the GPLv2+ and is overseen by The Linux Foundation in an effort to ensure the project’s growth and sustainability.

In this post I’m going to demonstrate how to install FRR on the popular network modeling platform Eve-NG. This will allow you to evaluate FRR and its many features and hopefully inspire you to get more involved with open source routing.

Prerequisites

If you are not familiar with Eve-NG or Emulated Virtual Environment (EVE), it is a platform for designing, testing and training with virtual appliances and network emulation software. Although geared more towards networking, you can emulate almost anything in Eve-NG that can run on the KVM hypervisor. Since FRR is a routing platform Eve-NG provides everything you need to start creating labs and proof of concepts using FRR.

Eve-NG can run on bare metal or as a virtual appliance on KVM and VMware. There are a few different installation methods so I’m not going to cover that in this post. Once you have a running instance of Eve-NG you can follow along with how to set up FRR for use within Eve-NG.

Client Tools

Whether you choose to work from a Windows, Mac or Linux OS you’ll need the following tools to work with Eve-NG and to install FRR.

  • VNC
  • Telnet
  • SSH

It is highly recommended that you install the Eve-NG Client Integration tools for your specific OS.

Installation

Before we start installing FRR its important to check the FRR Releases page. Here you’ll find a list of versions and their supported features as well as the different installation methods for your chosen base operating system.

If you are interested in testing a specific feature you should also review the Supported Protocols section of the FRR documentation. Here you’ll find the OS and kernel version requirements for all of FRR’s supported features.

It’s important to note that some of the newest features of FRR require the latest linux kernel versions. I’m going to start with a standard installation of the Ubuntu Server version 18.04.3 LTS and demonstrate how to upgrade to the most recent kernel versions.

The process I’m going to use is well documented in the Eve-NG Linux How-To documentation. I’ve only added a few steps I’ve found useful for working with FRR.

Get Ubuntu Server ISO

Using SSH or the console, log in as root to your Eve-NG server and download the latest LTS version of the Ubuntu Server.

[email protected]:~# wget http://releases.ubuntu.com/18.04.3/ubuntu-18.04.3-live-server-amd64.iso

Create qemu directories and images

From your Eve-NG server create the required directories and image files. Eve-NG requires the directory be prefixed with linux-. I’m going to install FRR using the latest available Debian package version 7.1. I’ve chosen a base disk size of 16GB but you can use any size you like so long as it meets the Ubuntu server minimum requirements.

cd /opt/unetlab/addons/qemu/
mkdir linux-frr-7.1 && cd ./linux-frr-7.1
cp /root/ubuntu-18.04.3-live-server-amd64.iso cdrom.iso
/opt/qemu/bin/qemu-img create -f qcow2 virtioa.qcow2 16G

Before continuing verify the creation of the qemu image file.

[email protected]:/opt/unetlab/addons/qemu/linux-frr-7.1# /opt/qemu/bin/qemu-img info virtioa.qcow2
image: virtioa.qcow2
file format: qcow2
virtual size: 16G (17179869184 bytes)
disk size: 196K
cluster_size: 65536
Format specific information:
    compat: 1.1
    lazy refcounts: false
    refcount bits:

Create Eve-NG Lab

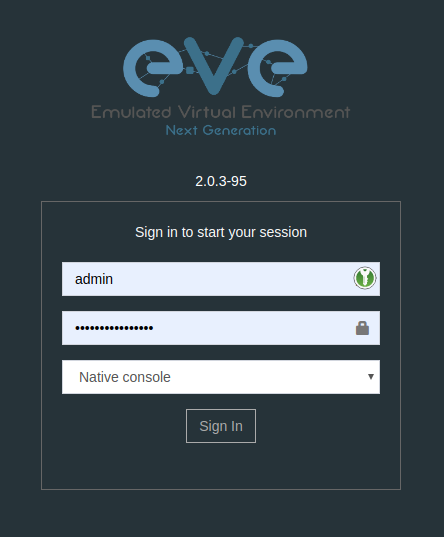

Now log in to the web interface of your Eve-NG server.

Eve-NG Login

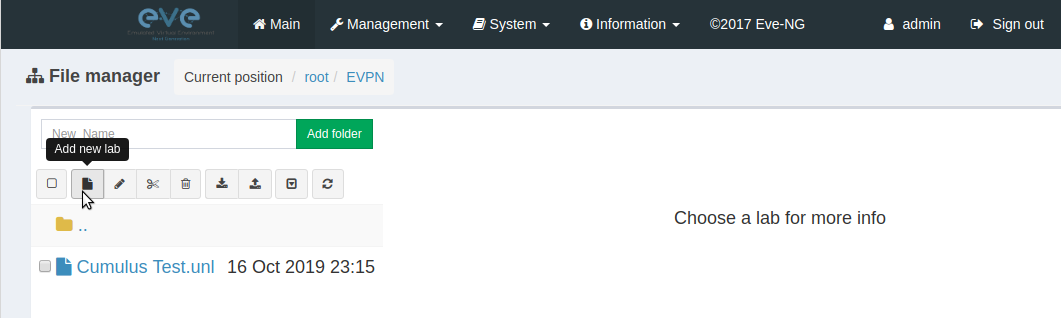

From the root of the file manager click the icon to add a new lab.

Add Lab

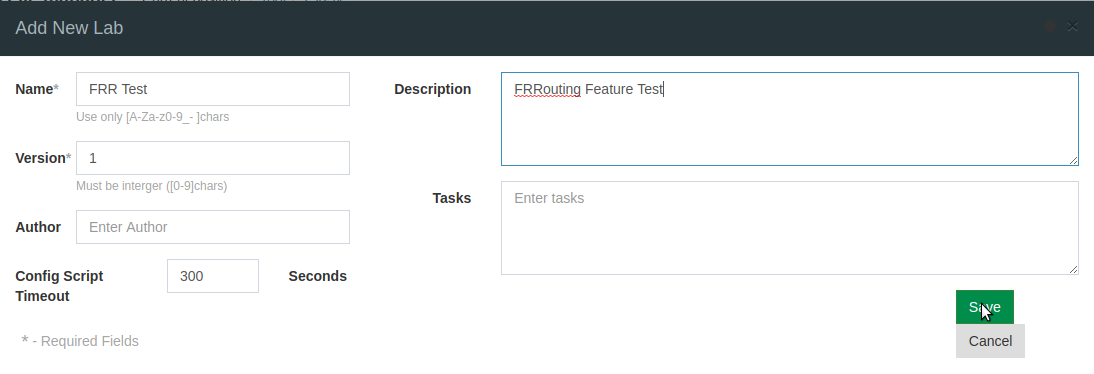

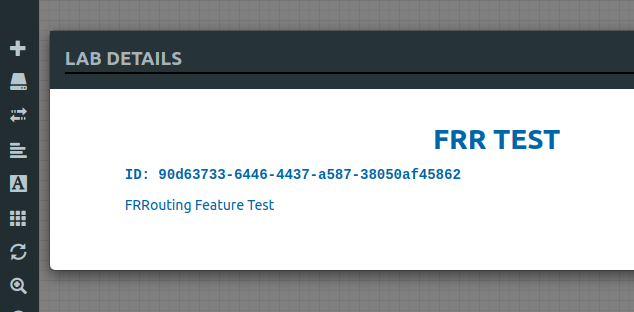

Give the lab a name and description similar to FRR Test.

Add Lab

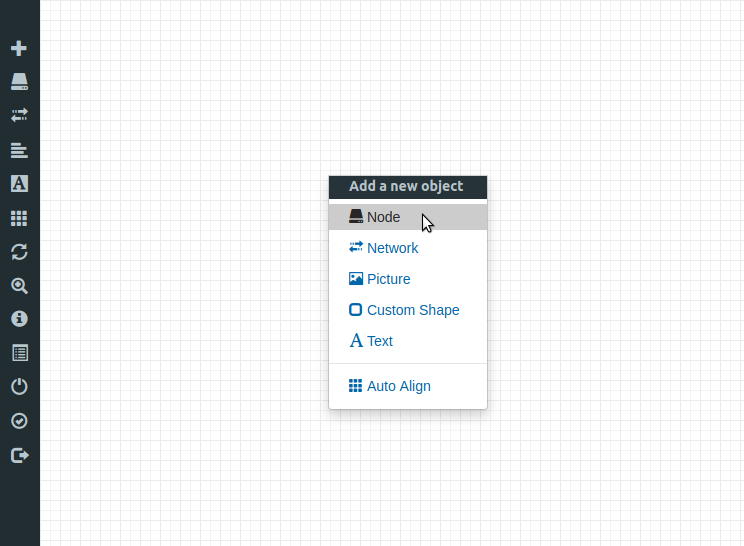

Right click anywhere inside the new lab and select Node from the new object menu.

Add Node

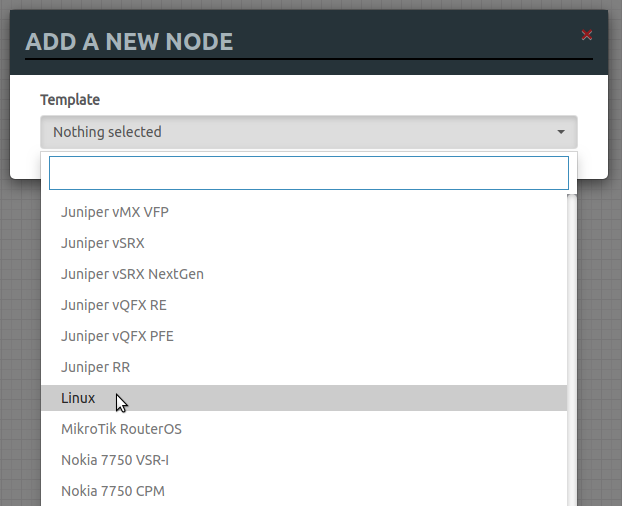

Scroll down the new node list and select Linux

Add Node

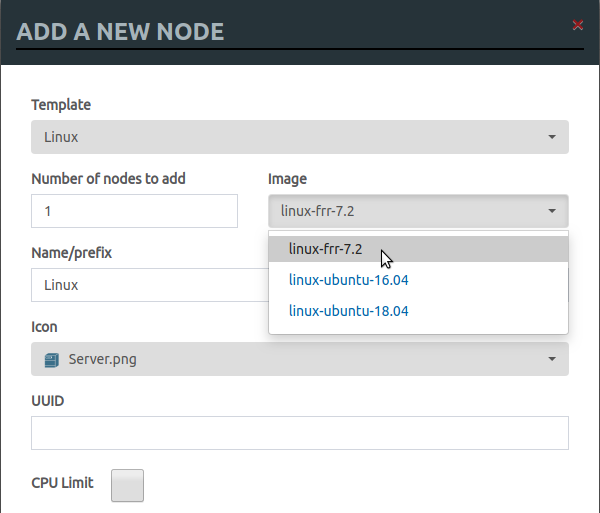

If this is the first linux image you’ve added to Eve-NG you should only see the linux-frr-7.1 in the list. Otherwise choose the FRR image from the image list.

Add Node

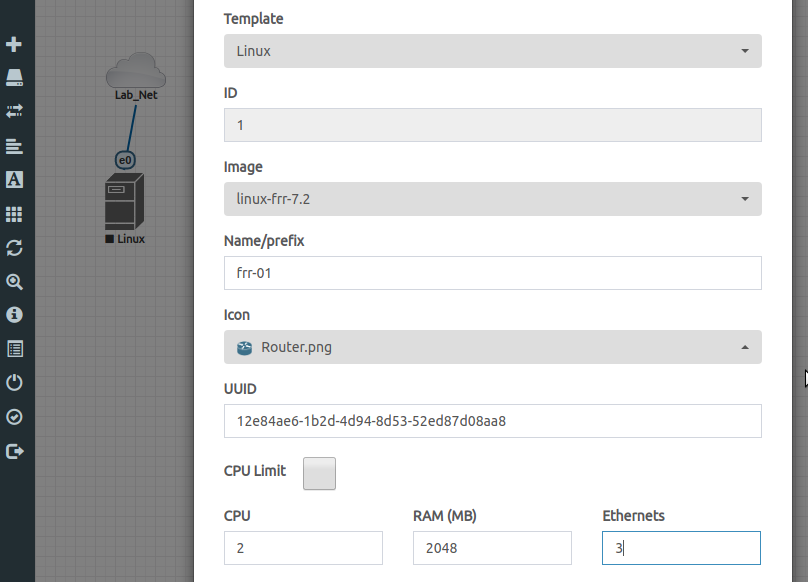

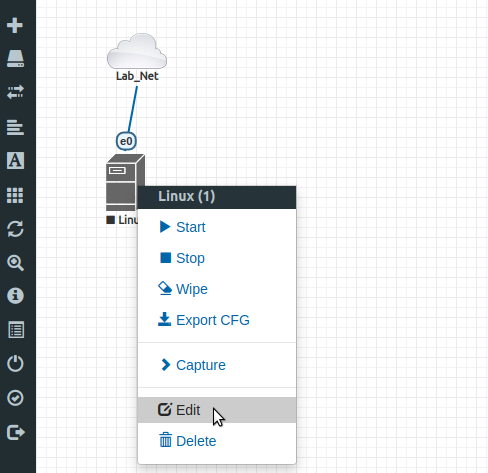

To make the installation faster you can add more CPU and RAM to the node settings. All other settings can be left at their defaults. Click Save once you’ve made your changes.

Add Node

In order to install updates and the FRR packages to the instance, you’ll need to connect it to your local network. Eve-NG uses Cloud networks to bridge virtual instances to interfaces on your Eve-NG server. This allows you to connect your lab instances to the same network used by Eve-NG for access to the Internet.

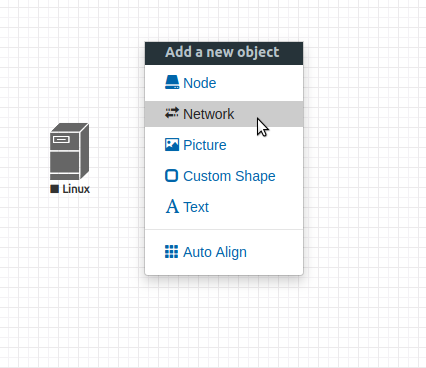

Right click in the open space of your lab and select Network from the new object menu.

Add Network

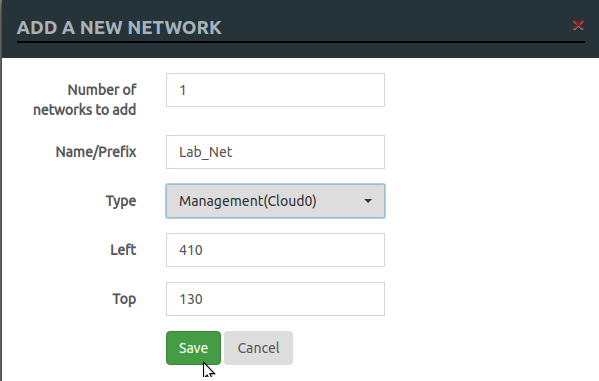

Give the network a name and change the Type to Management(Cloud0).

This will bridge the instance of the Ubuntu server to the same network used by your Eve-NG server. If this network is not enabled with DHCP you will have to configure a static IP on the Ubuntu server during the installation process.

Add Network

To connect the node to the newly created cloud network, mouse over the node and drag the orange plug icon from the node to the cloud network icon.

Connect Node

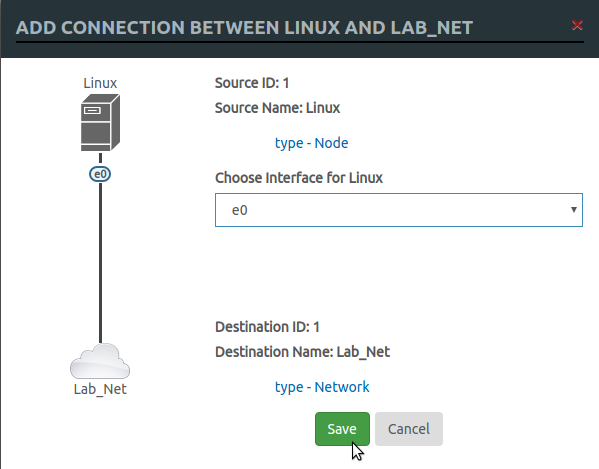

The Add Connection menu will appear and allow you to specify which interface on your Ubuntu server instance you want to connect to the cloud network. Unless you added additional interfaces when you added your node you should only see an option for e0.

Connect Node

Click Save to complete the connection.

Connect Node

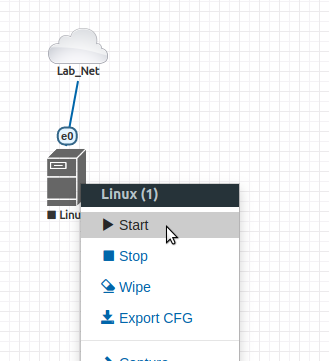

Now right click on the node and select Start from the node menu.

Start Node

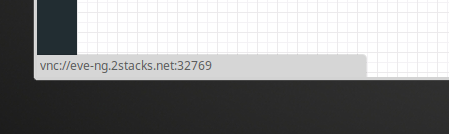

If you’ve installed the Eve-NG Client Integration tools you should now be able to click on the node to connect with VNC. If you did not you’ll need to open your VNC client and manually connect to the instance. You can find the VNC connection URL by mousing over the node and looking in the bottom left hand corner of your browser window.

Connect To Node

Install Ubuntu Server

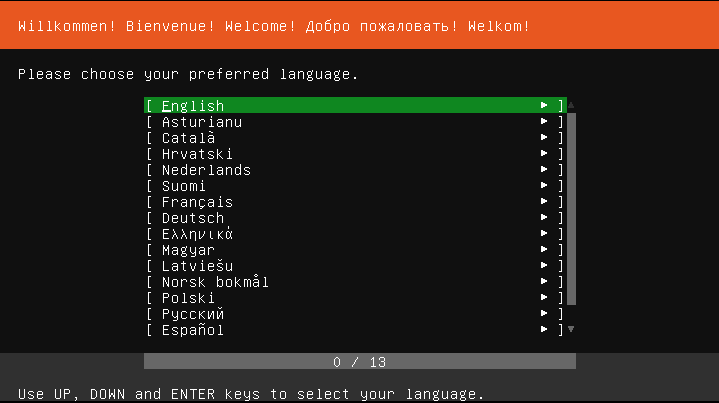

Once you’re connected to the instance with VNC proceed with the installation of the Ubuntu Server OS.

Install OS

Accept all of the defaults until you reach the Filesystem Setup screen. Here you should choose the Manual option.

Install OS

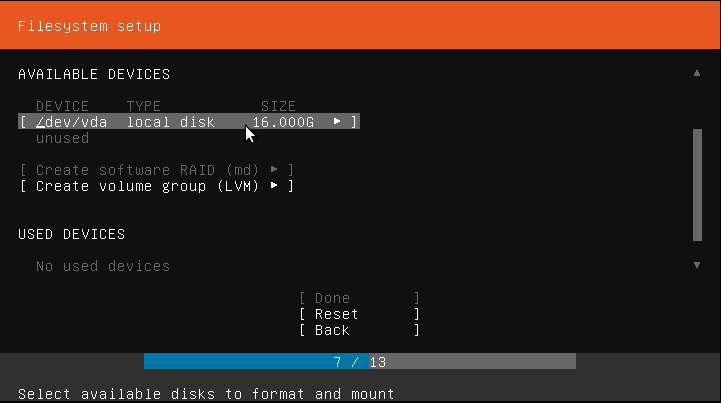

Select /dev/vda from the list of available devices.

Install OS

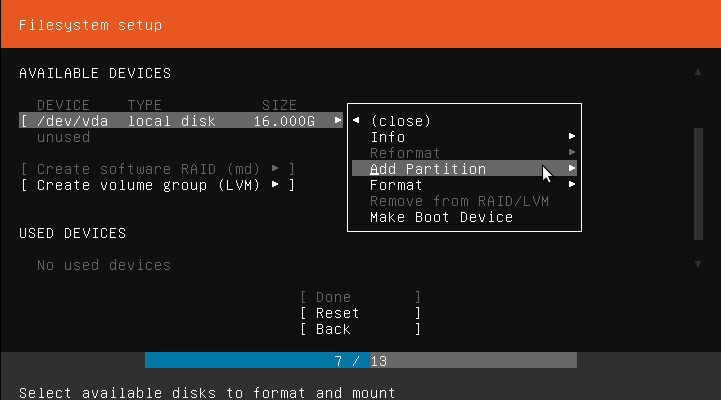

Now select Add Partition.

Install OS

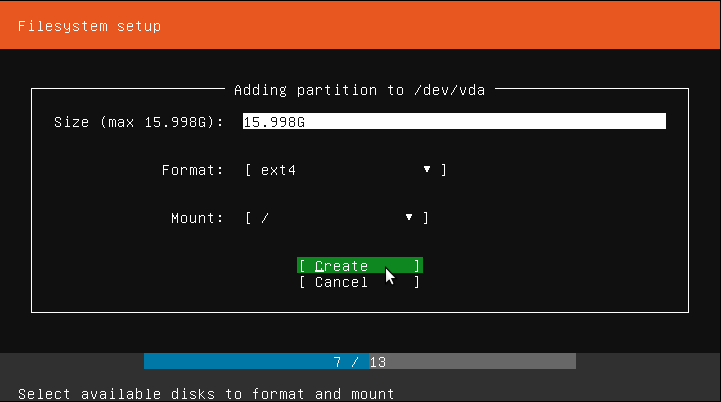

Enter the max size available based on the size of the qemu image you created earlier and select Create

Install OS

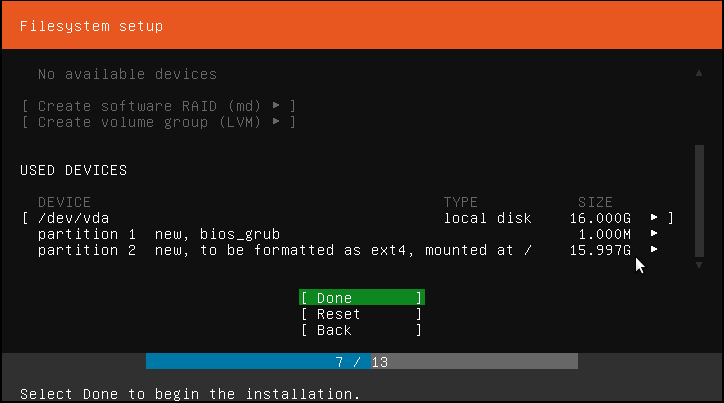

The max size should be just shy of the total disk size as the installation has already reserved space for Grub.

Now select Done.

Install OS

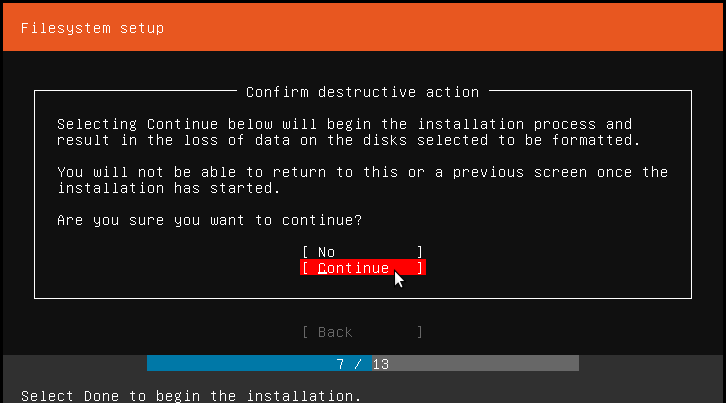

Select Continue to begin the installation.

Install OS

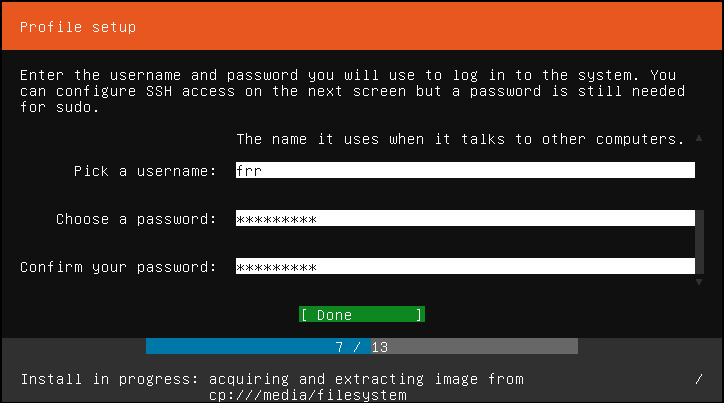

When you reach the Profile Setup menu enter a default username and password to be used to access the FRR instance.

NOTE: Do not use frr as the username as this will break the FRR installation.

Install OS

Select the option to enable the OpenSSH server. You can optionally import SSH keys if you know what you are doing.

Install OS

Do not select any additional Snap packages for installation, scroll to the bottom of the screen and select Done.

Install OS

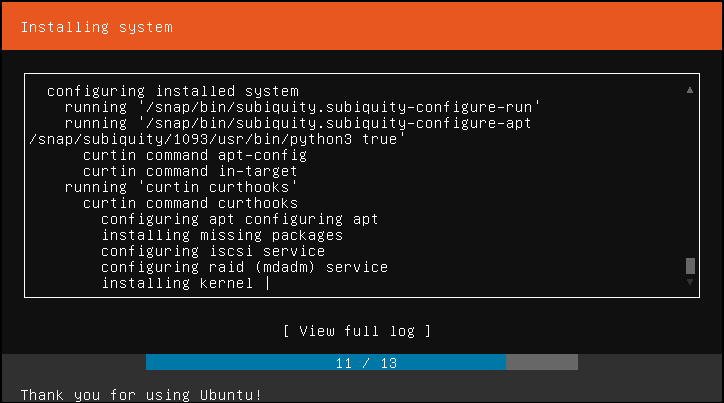

Allow the system to fully install and update packages. Do not select the option to Cancel update and reboot.

Install OS

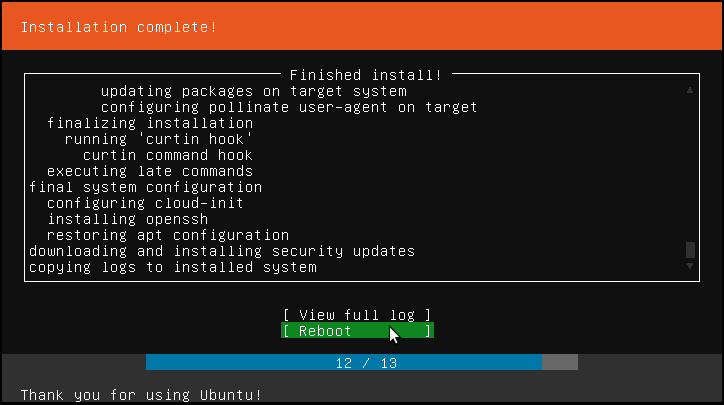

Once the installation and OS update have completed select the option to Reboot.

Install OS

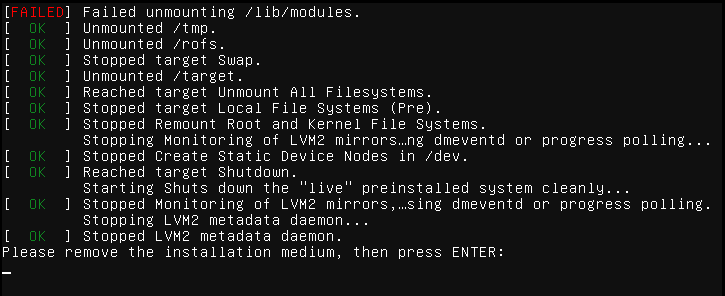

The reboot will pause and prompt you to remove the installation medium.

Install OS

At this point you should connect to your Even-NG server and remove the cdrom.iso file you created from the Ubuntu Server installation ISO.

cd /opt/unetlab/addons/qemu/linux-frr-7.1
rm -rf cdrom.iso

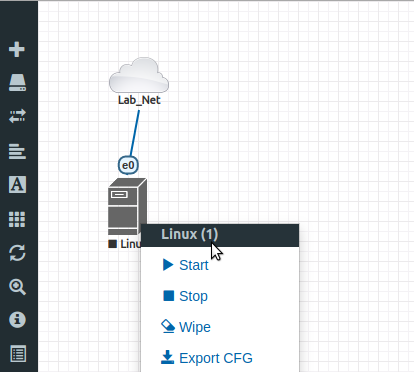

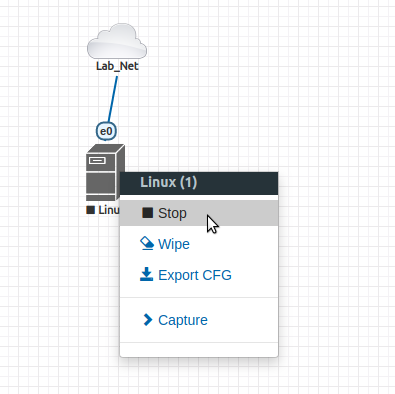

Now from the Eve-NG GUI right click on your node and select Stop from the node menu.

Stop Node

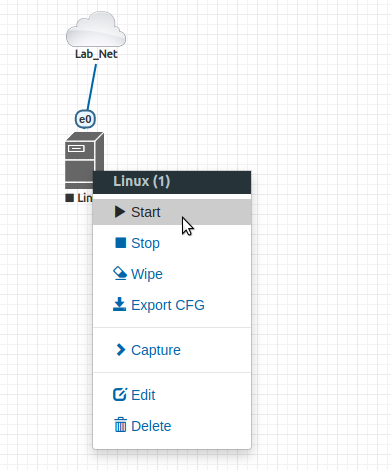

Right click on the node again and select Start from the node menu.

It is important to fully stop and then restart the node to ensure that it does not boot from a cached copy of the installation ISO.

Restart Node

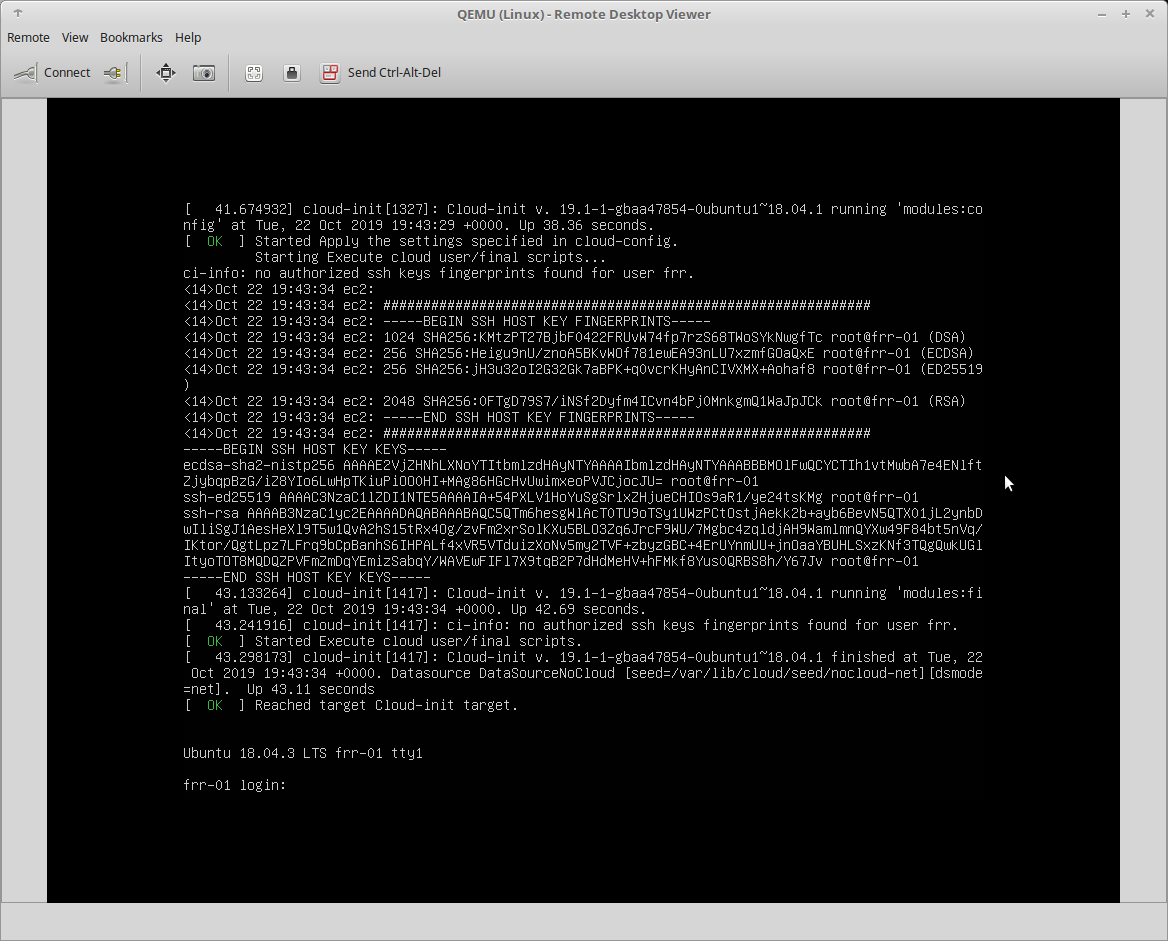

Now click on the node or manually launch your VNC client as before to connect to the console of the node.

Log In to Node

Upgrade Linux Kernel

To get the latest 5.0 kernel versions in the LTS release of Ubuntu Server you’ll need to set up the LTS Enablement Stack. You can read more about it in this HWE Kernel Install guide or just follow the steps below.

By default, Ubuntu LTS releases stay on the same Linux kernel they were released with. The hardware enablement stack (HWE) provides newer kernel and xorg support for existing Ubuntu LTS releases.

Login to the FRR system using the username and password you created during the Ubuntu Server installation.

First verify the current kernel version.

~$ lsb_release -a
No LSB modules are available.
Distributor ID: Ubuntu
Description:    Ubuntu 18.04.3 LTS
Release:        18.04
Codename:       bionic

~$ uname -a
Linux frr-01 4.15.0-66-generic #75-Ubuntu SMP Tue Oct 1 05:24:09 UTC 2019 x86_64 x86_64 x86_64 GNU/Linux

To upgrade to latest kernel version run the following;

sudo apt-get install --install-recommends linux-generic-hwe-18.04
sudo apt-get update
sudo apt-get dist-upgrade
sudo reboot

Now verify that you are on the latest 5.0 kernel version. If the kernel wasn’t updated run the dist-upgrade and reboot again.

~$ uname -a
Linux frr-01 5.0.0-32-generic #34~18.04.2-Ubuntu SMP Thu Oct 10 10:36:02 UTC 2019 x86_64 x86_64 x86_64 GNU/Linux

Add Debian Repo and Install packages

Now install FRR from the FRR Debian Repository.

curl -s https://deb.frrouting.org/frr/keys.asc | sudo apt-key add -
FRRVER="frr-stable"
echo deb https://deb.frrouting.org/frr $(lsb_release -s -c) $FRRVER | sudo tee -a /etc/apt/sources.list.d/frr.list
sudo apt update && sudo apt install frr frr-pythontools

Add Users to frrvty Group

To allow access to FRR’s vtysh configuration utility you must add users to the frrvty group.

sudo usermod -a -G frr,frrvty <your_username>

Enable Daemons

By default only zebra and staticd are enabled.

~$ ps -ef | grep frr
root       973     1  0 21:48 ?        00:00:00 /usr/lib/frr/watchfrr -d zebra staticd
frr        999     1  0 21:48 ?        00:00:00 /usr/lib/frr/zebra -d -A 127.0.0.1 -s 90000000
frr       1056     1  0 21:48 ?        00:00:00 /usr/lib/frr/staticd -d -A 127.0.0.1

To enable additional daemons edit the /etc/frr/daemons file with your preferred text editor. Change the no to yes for each daemon you want to enable.

~$ sudo vi /etc/frr/daemons

bgpd=yes
ospfd=yes
ospf6d=yes
ripd=yes
ripngd=yes
isisd=yes
pimd=yes
ldpd=yes
nhrpd=yes
eigrpd=yes
babeld=no
sharpd=yes
pbrd=yes
bfdd=yes
fabricd=yes

Restart frr with systemd.

sudo systemctl restart frr.service

Verify that the new daemons have started.

~$ ps -ef | grep frr
root      2149     1  0 00:49 ?        00:00:00 /usr/lib/frr/watchfrr -d zebra bgpd ripd ripngd ospfd ospf6d isisd pimd ldpd nhrpd eigrpd pbrd staticd bfdd fabricd
frr       2208     1  0 00:49 ?        00:00:00 /usr/lib/frr/zebra -d -A 127.0.0.1 -s 90000000
frr       2213     1  0 00:49 ?        00:00:00 /usr/lib/frr/bgpd -d -A 127.0.0.1
frr       2221     1  0 00:49 ?        00:00:00 /usr/lib/frr/ripd -d -A 127.0.0.1
frr       2225     1  0 00:49 ?        00:00:00 /usr/lib/frr/ripngd -d -A ::1
frr       2230     1  0 00:49 ?        00:00:00 /usr/lib/frr/ospfd -d -A 127.0.0.1
frr       2235     1  0 00:49 ?        00:00:00 /usr/lib/frr/ospf6d -d -A ::1
frr       2239     1  0 00:49 ?        00:00:00 /usr/lib/frr/isisd -d -A 127.0.0.1
frr       2243     1  0 00:49 ?        00:00:00 /usr/lib/frr/pimd -d -A 127.0.0.1
frr       2248     1  0 00:49 ?        00:00:00 /usr/lib/frr/ldpd -L
frr       2249     1  0 00:49 ?        00:00:00 /usr/lib/frr/ldpd -E
frr       2250     1  0 00:49 ?        00:00:00 /usr/lib/frr/ldpd -d -A 127.0.0.1
frr       2256     1  0 00:49 ?        00:00:00 /usr/lib/frr/nhrpd -d -A 127.0.0.1
frr       2260     1  0 00:49 ?        00:00:00 /usr/lib/frr/eigrpd -d -A 127.0.0.1
frr       2281     1  0 00:49 ?        00:00:00 /usr/lib/frr/bfdd -d -A 127.0.0.1
frr       2284     1  0 00:49 ?        00:00:00 /usr/lib/frr/pbrd -d -A 127.0.0.1
frr       2287     1  0 00:49 ?        00:00:00 /usr/lib/frr/fabricd -d -A 127.0.0.1
frr       2291     1  0 00:49 ?        00:00:00 /usr/lib/frr/staticd -d -A 127.0.0.1

Keep in mind that each daemon requires an additional pthread and memory and BGP requires more than one additional thread. In production is is not unreasonable to have a CPU per enabled daemon. At minimum BGP would require 2 CPUs and ~600MB of memory (per table) for a full Internet table of routes.

Enable Kernel Forwarding

IP forwarding is disabled by default on most linux distributions so in order to perform any routing you must enable ip forwarding in the kernel by editing /etc/sysctl.conf and uncommenting the following lines.

net.ipv4.ip_forward=1
net.ipv6.conf.all.forwarding=1

Some documentation lists the setting to enable IPv4 forwarding as net.ipv4.conf.all.forwarding=1. Verify which setting is appropriate for you system.

Surviving Reboots

At the time of this writing there is a bug in Ubuntu that prevents some sysctl settings from loading after reboot.

One workaround is to create a new file /etc/rc.local and add the following contents:

#!/bin/bash
# /etc/rc.local

# Load kernel variables from /etc/sysctl.d
/etc/init.d/procps restart

exit 0

Make sure that the file is executable by running;

sudo chmod 755 /etc/rc.local

Optional Settings

Additional sysctl settings and kernel modules are required for MPLS and VRFs. Please see the FRR installation documentation for these settings.

Initial FRR Configuration

If you want to set some basic defaults in FRR that will be applied to all new instances created in Eve-NG, you should configure them prior to committing any changes back to the base qemu image.

You can configure FRR directly via its config files or interactively using vty or vtysh.

To start an interactive shell using vtysh run the vtysh command. Keep in mind that the currently logged in user must be a member of the frrvty group in linux.

~$ vtysh

Hello, this is FRRouting (version 7.1).
Copyright 1996-2005 Kunihiro Ishiguro, et al.

Router#

In order to use vty you’ll need to configure a vty and enable password.

~$ vtysh

Hello, this is FRRouting (version 7.1).
Copyright 1996-2005 Kunihiro Ishiguro, et al.

Router# configure terminal
Router(config)# password zebra
Router(config)# enable password zebra
Router(config)# exit
Router# write memory
Note: this version of vtysh never writes vtysh.conf
Building Configuration...
Integrated configuration saved to /etc/frr/frr.conf
[OK]
Router# exit

Now you can also access the CLI using the vty interface.

~$ telnet localhost 2601
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.

Hello, this is FRRouting (version 7.1).
Copyright 1996-2005 Kunihiro Ishiguro, et al.


User Access Verification

Password: zebra
Router> enable
Password: zebra
Router#

Disable integrated configuration file (optional)

By default FRR uses an Integrated configuration mode where all configs are kept in a single frr.conf file. Though optional, it is recommended to use a configuration file per daemon. To disable the use of the integrated frr.conf and instead use a separate configuration file per daemon, first edit the vtysh.conffile.

sudo sed -i 's/^service/no service/g' /etc/frr/vtysh.conf

Now login with vtysh and save the configuration.

$ vtysh

Hello, this is FRRouting (version 7.1).
Copyright 1996-2005 Kunihiro Ishiguro, et al.

Router# wr mem
Note: this version of vtysh never writes vtysh.conf
Building Configuration...
Configuration saved to /etc/frr/zebra.conf
Configuration saved to /etc/frr/ripd.conf
Configuration saved to /etc/frr/ripngd.conf
Configuration saved to /etc/frr/ospfd.conf
Configuration saved to /etc/frr/ospf6d.conf
Configuration saved to /etc/frr/ldpd.conf
Configuration saved to /etc/frr/bgpd.conf
Configuration saved to /etc/frr/isisd.conf
Configuration saved to /etc/frr/pimd.conf
Configuration saved to /etc/frr/nhrpd.conf
Configuration saved to /etc/frr/eigrpd.conf
Configuration saved to /etc/frr/fabricd.conf
Configuration saved to /etc/frr/pbrd.conf
Configuration saved to /etc/frr/staticd.conf
Configuration saved to /etc/frr/bfdd.conf

Be sure to remove the combined configuration files. All daemons check for the existence of this file at startup, and if it exists will not load their individual configuration files.

sudo rm -rf /etc/frr/frr.conf /etc/frr/frr.conf.sav

Enable Eve-NG Telnet access to FRR nodes

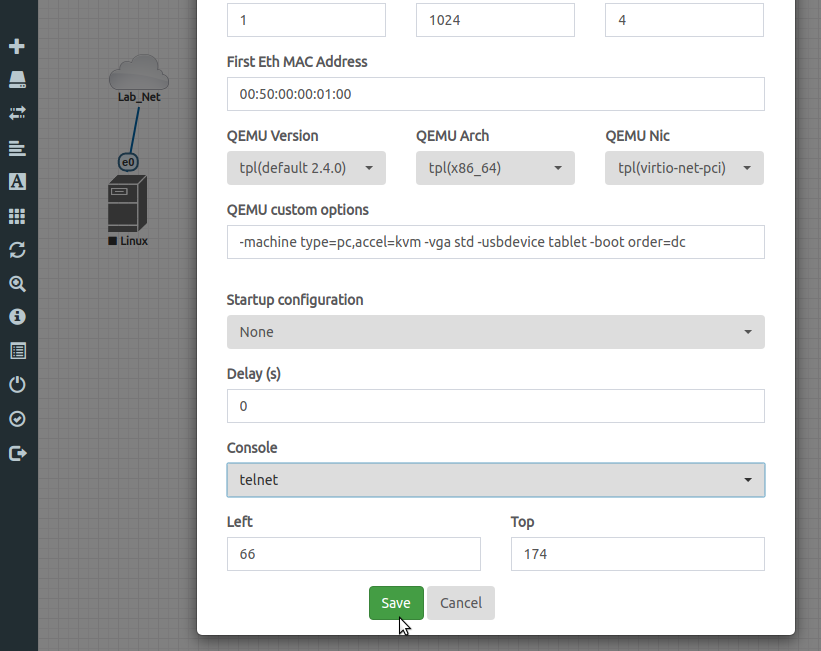

You may prefer to connect to your new FRR instances using telnet instead of VNC. This allows you to use client tools such as Putty and SecureCRT.

Warning !!! Use the following command INSIDE the FRR instance. DO NOT execute this on your Eve-NG server or your workstation.

sudo sed -i 's/GRUB_CMDLINE_LINUX=.*/GRUB_CMDLINE_LINUX="console=ttyS0,115200 console=tty0"/' /etc/default/grub
sudo update-grub

Commit changes to qemu image

To preserve the installation and the default changes you’ve made you’ll need to commit them to the base qemu image before creating new instances of FRR inside of Eve-NG.

First shutdown the FRR node from inside the VNC connection.

sudo shutdown -h now

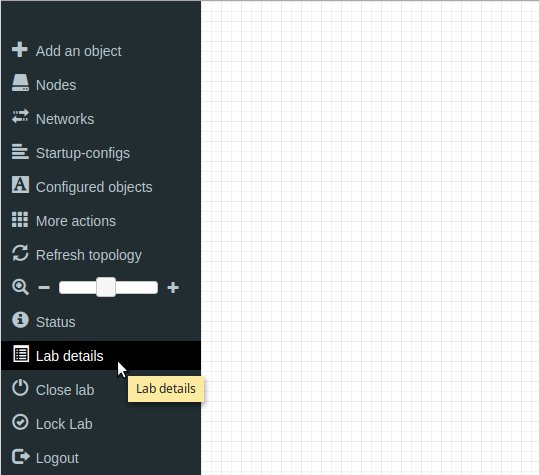

The changes we have made up to this point are all stored in a temporary directory inside Eve-NG. To locate the directory, on the left side-bar within the EVE lab interface, choose Lab Details to get your lab’s UUID.

Lab Details

Make note of the ID. This will be part of the directory path to your temporary image file.

Lab Details

The UUID associated with my test lab is ID: 90d63733-6446-4437-a587-38050af45862

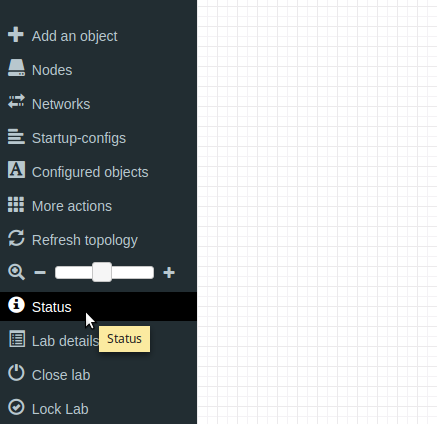

Next, find the POD ID of your user and the Node ID of your newly installed node. From the left side menu select Status.

Lab Status

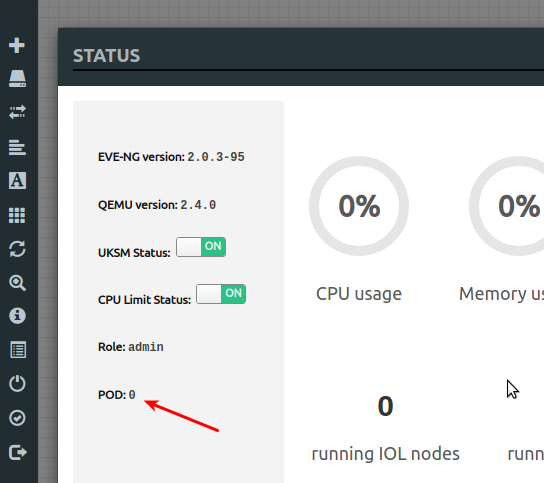

The Status page will show your current POD ID.

Lab Status

Unless you have created multiple Eve-NG users the default Pod ID should be 0.

To get the Node ID right click on the node you created in the lab.

Node Details

If this is the first/only node you’ve created in this lab the ID should be 1.

Using this information, connect to your Eve-NG server and locate the directory that contains the changes you made to the default image.

cd /opt/unetlab/tmp/<pod_id>/<lab_uuid>/node_id/

Verify that you have found the correct image with;

~$ /opt/qemu/bin/qemu-img info virtioa.qcow2
image: virtioa.qcow2
file format: qcow2
virtual size: 16G (17179869184 bytes)
disk size: 3.3G
cluster_size: 65536
backing file: /opt/unetlab/addons/qemu/linux-frr-7.1/virtioa.qcow2
Format specific information:
    compat: 1.1
    lazy refcounts: false
    refcount bits: 16
    corrupt: false

You should see that the backing file points to the original qemu image we created.

Now commit the changes back to the base image;

/opt/qemu/bin/qemu-img commit virtioa.qcow2

Once the command completes run the included Eve-NG script to check and fix file permissions.

/opt/unetlab/wrappers/unl_wrapper -a fixpermissions

Testing new FRR images

Now that we have saved our FRR image we can launch multiple instances and create additional labs to test FRR’s features. I’ll demonstrate a simple OSPF routing lab and point out additional settings/options you may wish to use while running FRR in Eve-NG.

Add nodes

First we’ll update the existing node in the lab we’ve already created. Make sure the node has been stopped, right click on the node and select Edit.

Edit Node

Change the nodes name to something similar to frr-01. Update the CPU and RAM settings as needed and change the number of Ethernets to 3.

Edit Node

If you prefer to use Telnet instead of VNC, change the Console type to telnet. Click Save to update the node.

Edit Node

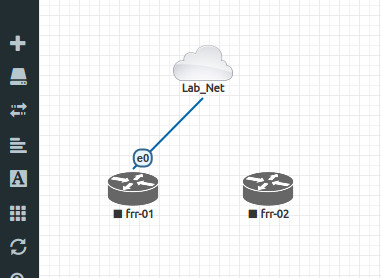

Now add an additional FRR node by right clicking in the open area of the lab and selecting Node as shown in previous steps.

Add Node

Connect the second node to the existing cloud network using its e0 interface.

Connect Node

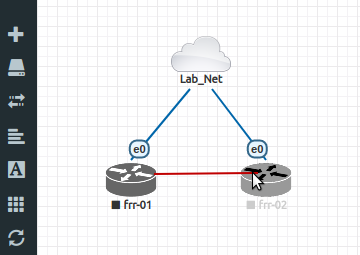

Connect the two FRR instances together by dragging the connection icon from one instance to the other.

Connect Node

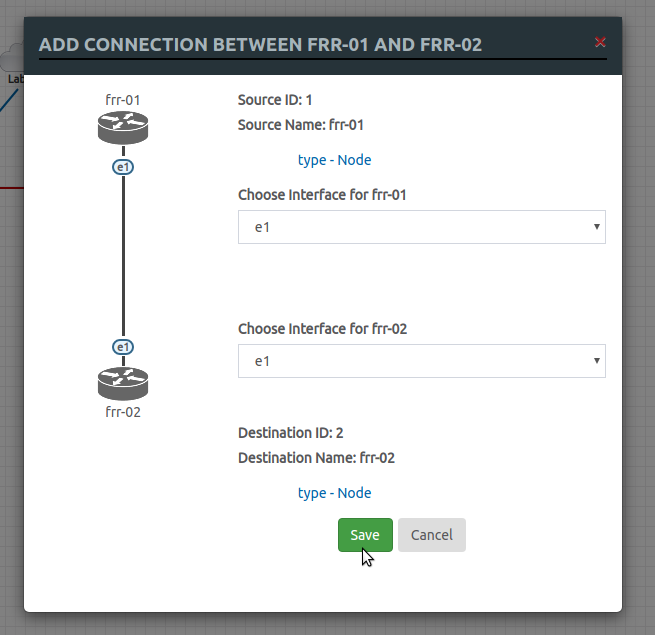

In the Add Connection window choose interface e1 for both FRR instances.

Connect Node

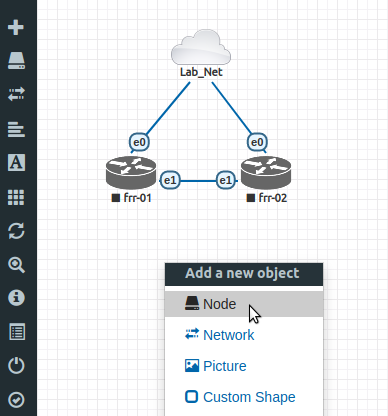

Now we’ll add two Virtual PC Simulator (VPCS) instances to act as end hosts connected to our FRR OSPF network. Right click on the lab and select Node again.

Add VPCS

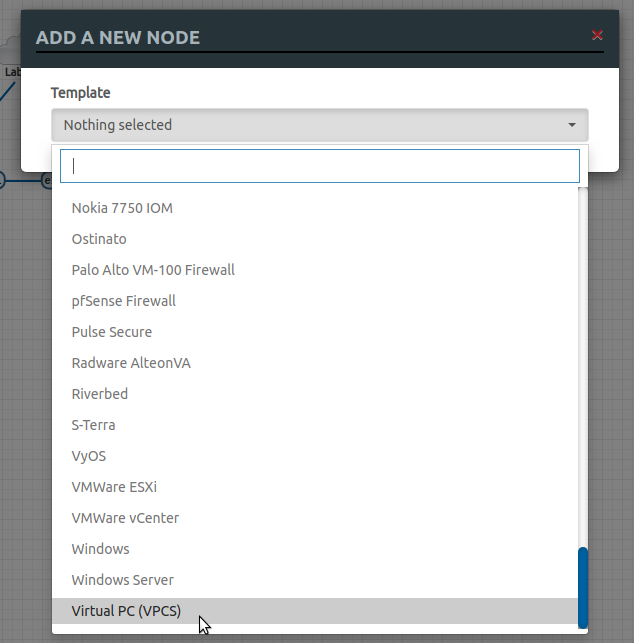

Scroll to the bottom of the list and select Virtual PC (VPCS).

Add VPCS

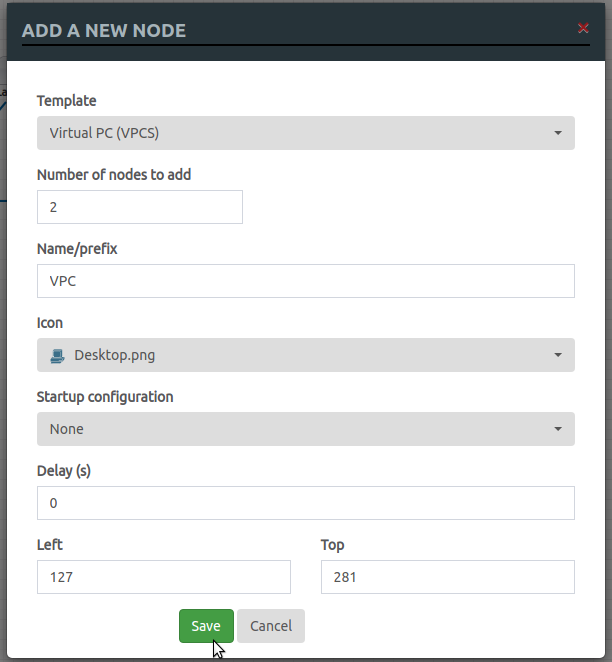

In the Add Node window, set the number of nodes to add to 2, set a name/prefix like VPC and click Save.

Add VPCS

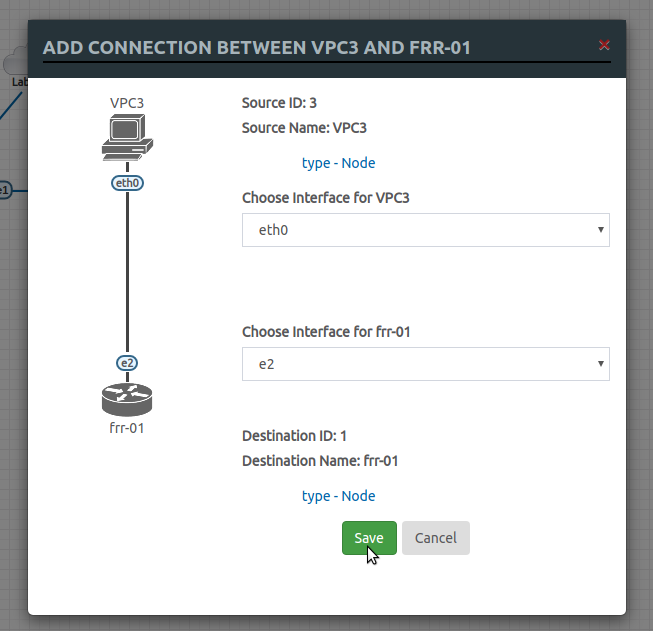

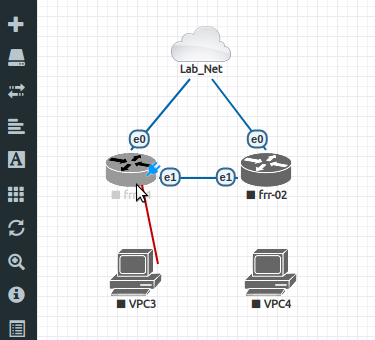

Now connect each VPCS to a respective instance of FRR.

Connect VPCS

Connect the VPCS eth0 interface to the FRR e2 interface.

Connect VPCS

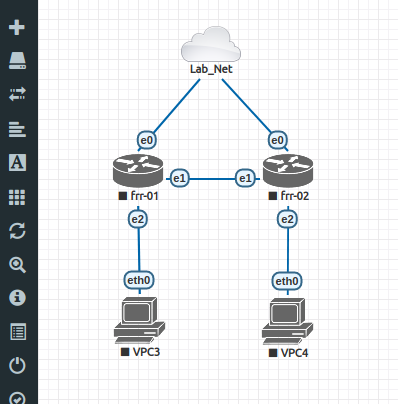

At this point your lab should look similar to the following.

Final Lab

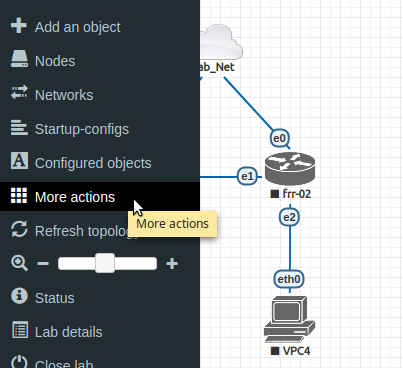

To start all nodes simultaneously, select More Actions from the left side menu.

Start Nodes

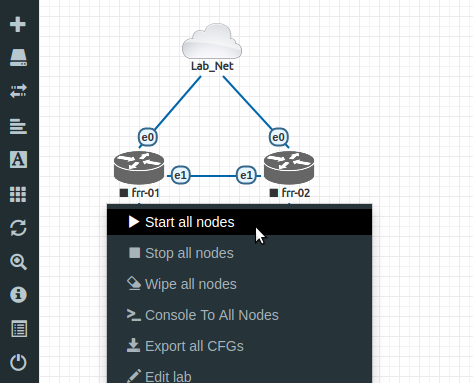

Now select Start all nodes from the actions menu.

Start Nodes

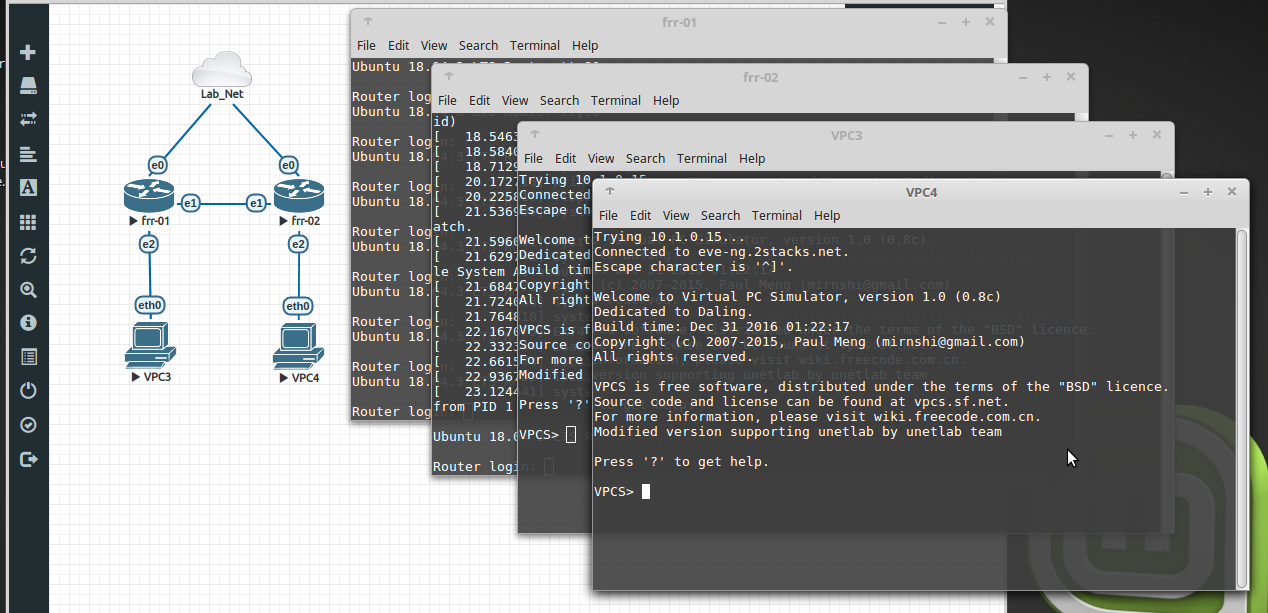

Now connect to all nodes by click on each inside the lab.

All of my nodes are configured to use telnet and the Eve-NG client integration tools are configured to open my default terminal application.

Connect to Nodes

Configure OSPF Routing on FRR

Apply the following configurations to the FRR nodes in the lab.

frr-01

~$ vtysh

configure terminal
interface ens4
 no shutdown
 ip address 10.0.0.1/30
interface ens5
 no shutdown
 ip address 10.0.1.1/24
router ospf
 ospf router-id 1.1.1.1
 network 0.0.0.0/0 area 0.0.0.0
exit
exit
write memory

frr-02

~$ vtysh

configure terminal
interface ens4
 no shutdown
 ip address 10.0.0.2/30
interface ens5
 no shutdown
 ip address 10.0.2.1/24
router ospf
 ospf router-id 2.2.2.2
 network 0.0.0.0/0 area 0.0.0.0
exit
exit
write memory

Configure VPCS Networking

Now add an IP and default gateway to each of the VPCS instances.

vpcs1

ip 10.0.1.10/24 10.0.1.1

vpcs2

ip 10.0.2.10/24 10.0.1.1

Verify Routing

Now verify OSPF routing and reachability between the two VPCS instances.

frr-01

~$ sho ip ospf interface ens4
ens4 is up
  ifindex 3, MTU 1500 bytes, BW 4294967295 Mbit <UP,BROADCAST,RUNNING,MULTICAST>
  Internet Address 10.0.0.1/30, Broadcast 10.0.0.3, Area 0.0.0.0
  MTU mismatch detection: enabled
  Router ID 1.1.1.1, Network Type BROADCAST, Cost: 1
  Transmit Delay is 1 sec, State Backup, Priority 1
  Backup Designated Router (ID) 1.1.1.1, Interface Address 10.0.0.1
  Multicast group memberships: OSPFAllRouters OSPFDesignatedRouters
  Timer intervals configured, Hello 10s, Dead 40s, Wait 40s, Retransmit 5
    Hello due in 5.103s
  Neighbor Count is 1, Adjacent neighbor count is 1
~$ sho ip ospf neighbor

Neighbor ID     Pri State           Dead Time Address         Interface            RXmtL RqstL DBsmL
2.2.2.2           1 Full/DR           38.920s 10.1.0.65       ens3:10.1.0.64           0     0     0
2.2.2.2           1 Full/DR           38.922s 10.0.0.2        ens4:10.0.0.1            0     0     0
~$ sho ip route ospf
Codes: K - kernel route, C - connected, S - static, R - RIP,
       O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP,
       T - Table, v - VNC, V - VNC-Direct, A - Babel, D - SHARP,
       F - PBR, f - OpenFabric,
       > - selected route, * - FIB route, q - queued route, r - rejected route

O   10.0.0.0/30 [110/1] is directly connected, ens4, 00:02:08
O   10.0.1.0/24 [110/1] is directly connected, ens5, 00:05:23
O>* 10.0.2.0/24 [110/2] via 10.0.0.2, ens4, 00:01:58
  *                     via 10.1.0.65, ens3, 00:01:58
O   10.1.0.0/24 [110/1] is directly connected, ens3, 00:05:23

frr-01

~$ sho ip ospf interface ens4
ens4 is up
  ifindex 3, MTU 1500 bytes, BW 4294967295 Mbit <UP,BROADCAST,RUNNING,MULTICAST>
  Internet Address 10.0.0.2/30, Broadcast 10.0.0.3, Area 0.0.0.0
  MTU mismatch detection: enabled
  Router ID 2.2.2.2, Network Type BROADCAST, Cost: 1
  Transmit Delay is 1 sec, State DR, Priority 1
  Backup Designated Router (ID) 1.1.1.1, Interface Address 10.0.0.1
  Multicast group memberships: OSPFAllRouters OSPFDesignatedRouters
  Timer intervals configured, Hello 10s, Dead 40s, Wait 40s, Retransmit 5
    Hello due in 3.541s
  Neighbor Count is 1, Adjacent neighbor count is 1
~$ sho ip ospf neighbor

Neighbor ID     Pri State           Dead Time Address         Interface            RXmtL RqstL DBsmL
1.1.1.1           1 Full/Backup       38.479s 10.1.0.64       ens3:10.1.0.65           0     0     0
1.1.1.1           1 Full/Backup       38.479s 10.0.0.1        ens4:10.0.0.2            0     0     0
~$ sho ip route ospf
Codes: K - kernel route, C - connected, S - static, R - RIP,
       O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP,
       T - Table, v - VNC, V - VNC-Direct, A - Babel, D - SHARP,
       F - PBR, f - OpenFabric,
       > - selected route, * - FIB route, q - queued route, r - rejected route

O   10.0.0.0/30 [110/1] is directly connected, ens4, 00:22:33
O>* 10.0.1.0/24 [110/2] via 10.0.0.1, ens4, 00:22:23
  *                     via 10.1.0.62, ens3, 00:22:23
O   10.0.2.0/24 [110/1] is directly connected, ens5, 00:22:39
O   10.1.0.0/24 [110/1] is directly connected, ens3, 00:22:39

vpcs1

VPCS> ping 10.0.2.10

84 bytes from 10.0.2.10 icmp_seq=1 ttl=62 time=3.041 ms
84 bytes from 10.0.2.10 icmp_seq=2 ttl=62 time=2.739 ms
84 bytes from 10.0.2.10 icmp_seq=3 ttl=62 time=4.734 ms
84 bytes from 10.0.2.10 icmp_seq=4 ttl=62 time=17.732 ms
84 bytes from 10.0.2.10 icmp_seq=5 ttl=62 time=2.129 ms

vpcs2

VPCS> ping 10.0.1.10

84 bytes from 10.0.1.10 icmp_seq=1 ttl=62 time=6.083 ms
84 bytes from 10.0.1.10 icmp_seq=2 ttl=62 time=2.504 ms
84 bytes from 10.0.1.10 icmp_seq=3 ttl=62 time=8.699 ms
84 bytes from 10.0.1.10 icmp_seq=4 ttl=62 time=2.528 ms
84 bytes from 10.0.1.10 icmp_seq=5 ttl=62 time=4.602 ms

Conclusion

Now that you have tested the basic functionality of your new FRR image you can proceed to create more complex labs and test additional features of FRR. Whether you’re new to open source routing or you have plans to write your own Network Operating System (NOS) based on FRR, I recommend you check out the participate section of the FRR website to find out how you can become more involved with the project.

Comments
